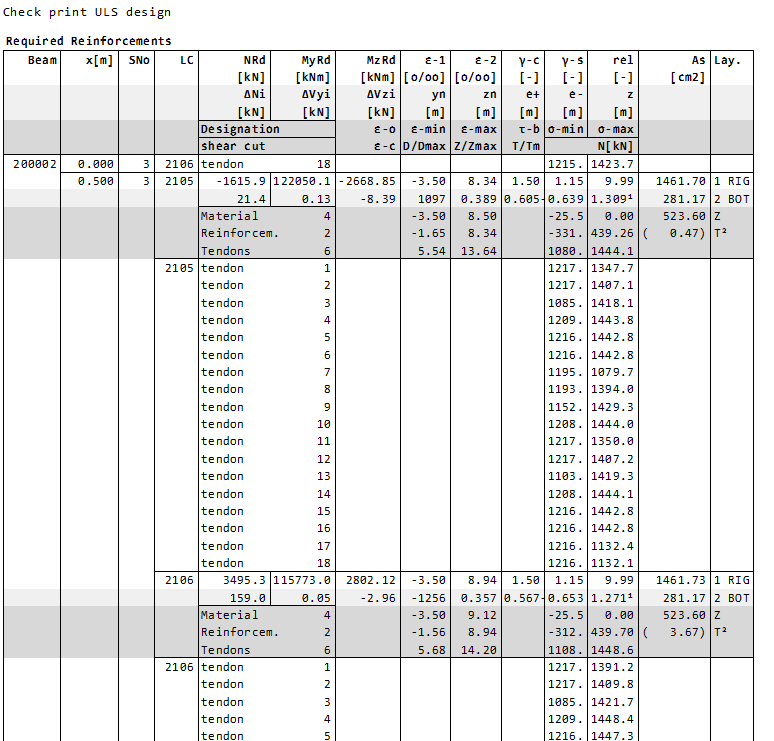

Analysis and design of box grider of bridge is done. Its showing result of Ast req and provided in table from in report. Does sofistik shows required or calculated and provided reinforcement in Graphic way in terms of Tensioned reinforcement required and provided ratio but in graphic way in result viewer or in grai.
No, these values are not saved because they are different in each load case. And interesting is only the necessary reinforcement after design of all load cases which is the provided one.

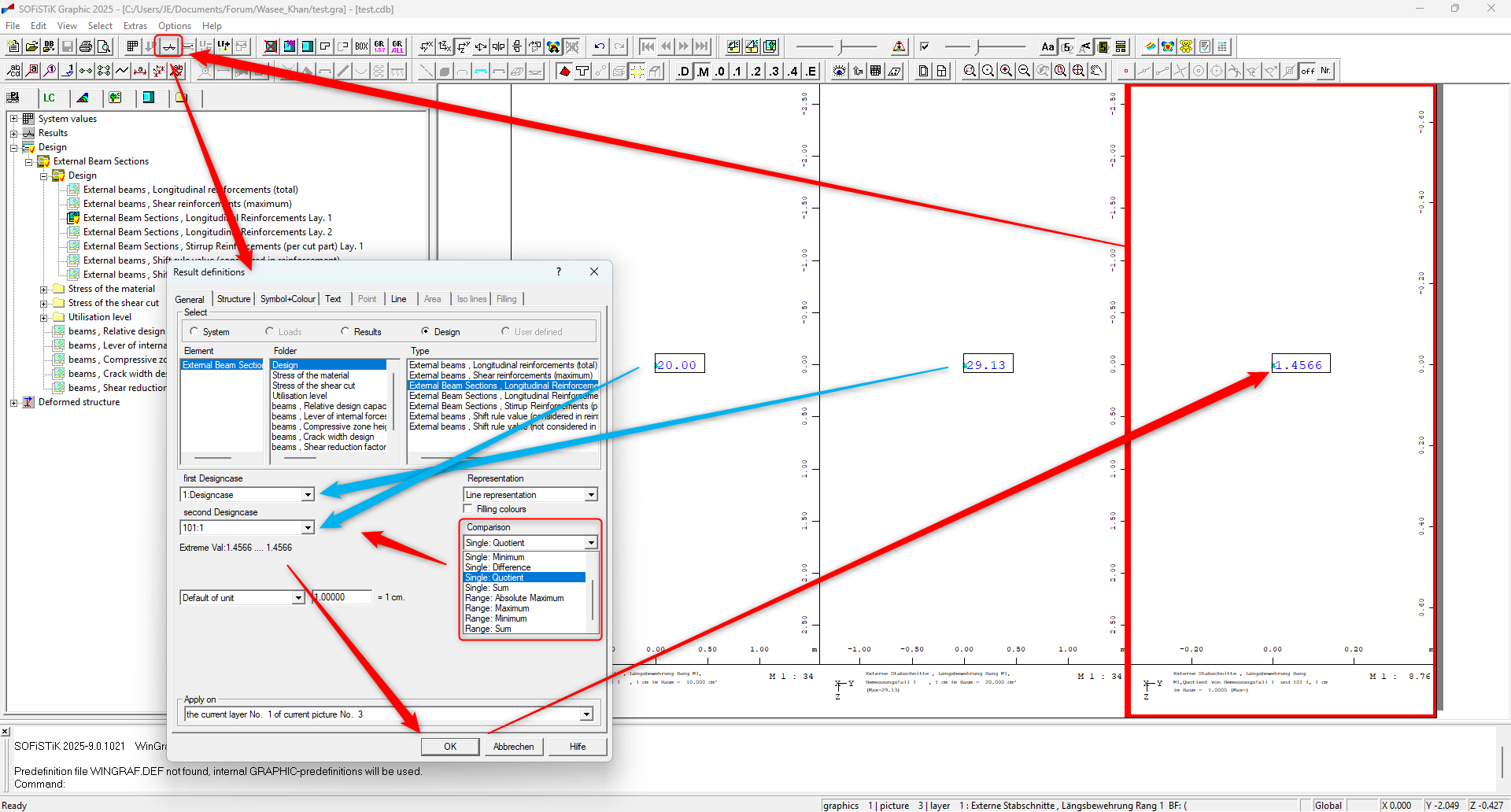

What you can do is to get a quotient between necessary reinforcement after design of all load cases and minimum reinforcement from AQUA. Attached you find a little example.
test.gra (1.3 KB)
test.dat (1.8 KB)
