How to define variable (in Z direction) area load on curved surfaces

[netsonic_Sofistik]

There are six half cylindrical surfaces subjeced to internal pressure. The pressure varies along Z axis.

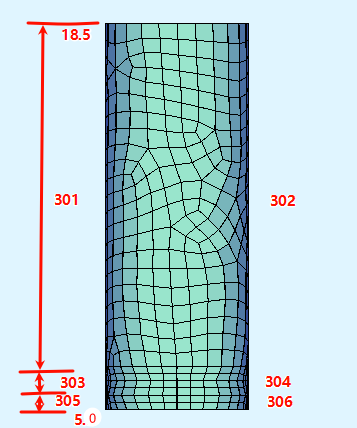

The 301 to 306 are IDs of the surfaces and they all belongs to GRP 200.
The radious of the circle is 2.5m. The pressure is as follows

Z	pressure
18.5	0.000
17.5	3.502
16.5	7.897
15.5	13.034
14.5	18.785
13.5	23.251
12.5	26.590
11.5	29.591
10.5	32.288
9.5	34.712
8.5	36.891
7.5	38.850
6.5	40.610
5.5	42.193

This is the sofiload

LC	NO	TITL
	200
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	0.000	X1	-2.5	0	18.5	P2	0.000	X2	2.5	0	18.5	P3	3.502203526	X3	2.5	0	17.5	P4	3.502203526	X4	-2.5	0	17.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	3.502	X1	-2.5	0	17.5	P2	3.502	X2	2.5	0	17.5	P3	7.896961	X3	2.5	0	16.5	P4	7.896961	X4	-2.5	0	16.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	7.896961	X1	-2.5	0	16.5	P2	7.896961	X2	2.5	0	16.5	P3	13.03425256	X3	2.5	0	15.5	P4	13.03425256	X4	-2.5	0	15.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	13.03425256	X1	-2.5	0	15.5	P2	13.03425256	X2	2.5	0	15.5	P3	18.78527832	X3	2.5	0	14.5	P4	18.78527832	X4	-2.5	0	14.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	18.78527832	X1	-2.5	0	14.5	P2	18.78527832	X2	2.5	0	14.5	P3	23.25115015	X3	2.5	0	13.5	P4	23.25115015	X4	-2.5	0	13.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	23.25115015	X1	-2.5	0	13.5	P2	23.25115015	X2	2.5	0	13.5	P3	26.58980115	X3	2.5	0	12.5	P4	26.58980115	X4	-2.5	0	12.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	26.58980115	X1	-2.5	0	12.5	P2	26.58980115	X2	2.5	0	12.5	P3	29.5906649	X3	2.5	0	11.5	P4	29.5906649	X4	-2.5	0	11.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	29.5906649	X1	-2.5	0	11.5	P2	29.5906649	X2	2.5	0	11.5	P3	32.28791696	X3	2.5	0	10.5	P4	32.28791696	X4	-2.5	0	10.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	32.28791696	X1	-2.5	0	10.5	P2	32.28791696	X2	2.5	0	10.5	P3	34.71227516	X3	2.5	0	9.5	P4	34.71227516	X4	-2.5	0	9.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	34.71227516	X1	-2.5	0	9.5	P2	34.71227516	X2	2.5	0	9.5	P3	36.89134949	X3	2.5	0	8.5	P4	36.89134949	X4	-2.5	0	8.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	36.89134949	X1	-2.5	0	8.5	P2	36.89134949	X2	2.5	0	8.5	P3	38.84995647	X3	2.5	0	7.5	P4	38.84995647	X4	-2.5	0	7.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	38.84995647	X1	-2.5	0	7.5	P2	38.84995647	X2	2.5	0	7.5	P3	40.61040185	X3	2.5	0	6.5	P4	40.61040185	X4	-2.5	0	6.5
	AREA	AUTO	NO	200	PROJ	YY	WIDE	2.5	TYPE	PZ	P1	40.61040185	X1	-2.5	0	6.5	P2	40.61040185	X2	2.5	0	6.5	P3	42.19273457	X3	2.5	0	5.5	P4	42.19273457	X4	-2.5	0	5.5

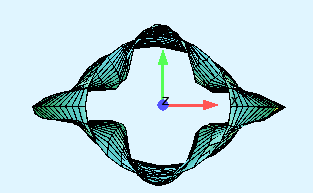

Since the structure and internal pressure are both symmetrical along circle, I would expect symmetrical deformation along circle, but it’s not

It also shows warning

An explicit number 200 with reference type AUTO is not unique: LC 200

[JE170969]

Try to use command VOLU in SOFiLOAD!

[netsonic_Sofistik]

Thank you @JE170969

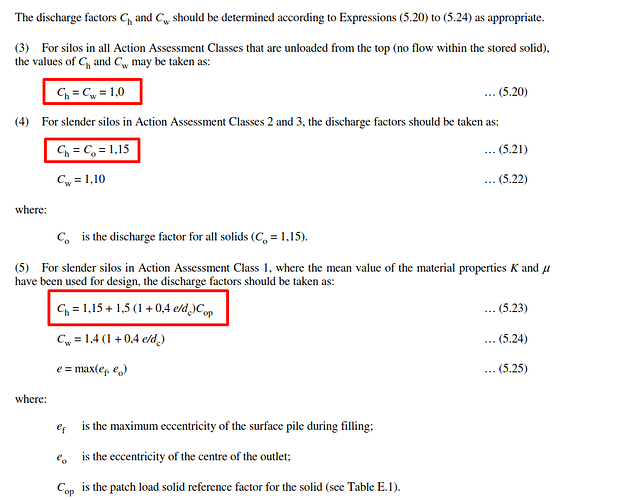

The P3 (Ch) equations in Sofistik is based on Eurocode, isn’t it?

The design code in my case is not Eurocode, it has different Ch equation. So Is there any workaround?

[pstassen]

In VOLU P3 (Ch) is a coefficient, so you can give it any value you want independently from the equations you show there.

[netsonic_Sofistik]

So in Sofistik, the Ch is a constant instead of a variable?
In my case, the Ch is a variable, it varies with the depth between the top surface of the filling and the spot of interest.

[Ilyin]

volume_load.dat (1.4 KB)
Please try this input. Local z-axis directed to inside cylinder.
