SSD Viewer and interpolated beam sections

SOFiSTiK SOFiSTiK Structural Desktop
1

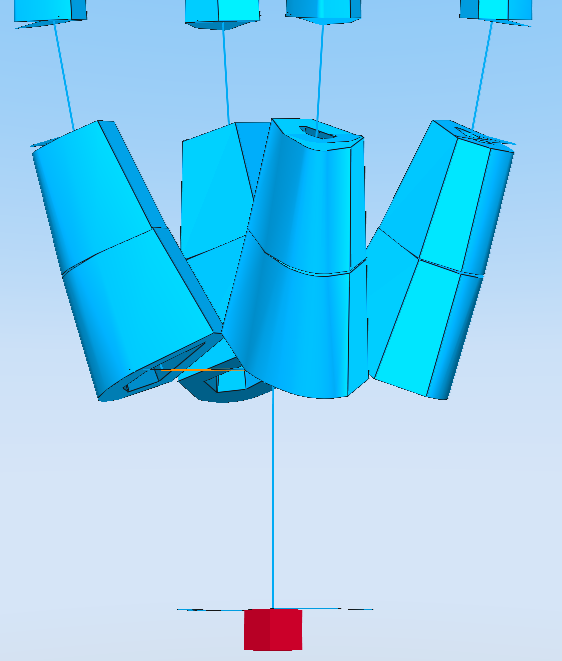

Hello, I am currently having problems with the Viewer and “Volume of beams/trusses/cables/quads” option. Sections are defined in Sofiplus and interpolated through the beams. Animator and sofiplus are showing good interpolation and beams look good, but in Viewer it looks like some sections are huge and exploded, I can not use it like that for output.

viewer
viewer611×625 77.7 KB

2

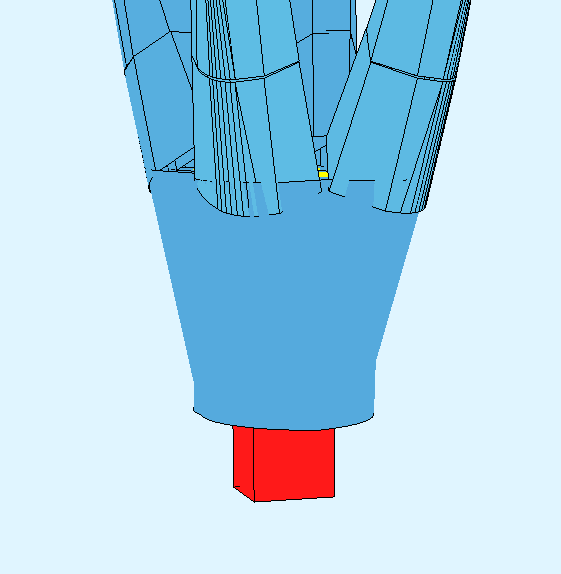

Animator looks like this

animator
animator561×574 4.31 KB

3

Which version dou you use?
Can you upload the (reduced) system that one is able to reproduce this behaviour?

4

Try putting small teddy task to calculate, after geometry creation:

+PROG AQUA urs:3
HEAD
INTE ALL

END
5

Unfortunately it did not help.

6

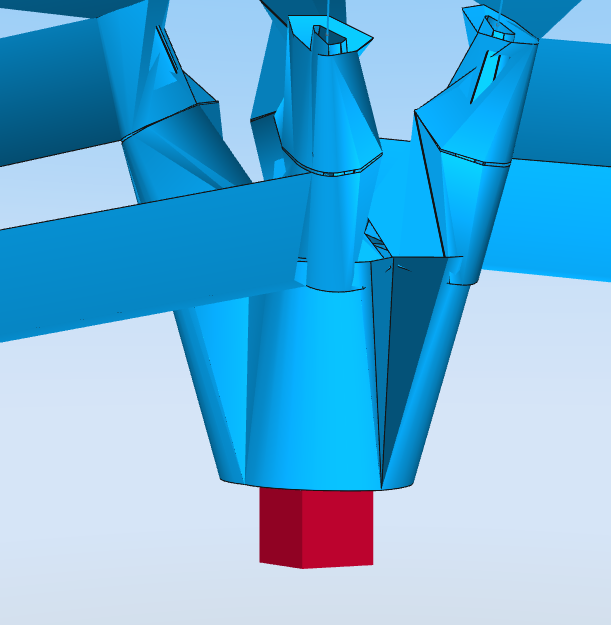

It’s a 2025, sections and beam done in Sofiplus. Tried it in 2026 but it still was not able to show the sections in the Viewer. Looks like this in 2026, not even showing the sections. Animator again looks good.

image562×661 62 KB

Unfortunately I can’t share the model at the moment.
