Sofiplus simple parametric section takes very long to calculate

SOFiSTiK SOFiPLUS
1

Hello everyone,

For a project I would like to make a calculation for a H beam where the height is variable.
In SofiPLUS it is possible to do this, like in the picture below:

image1296×1167 19.2 KB

The section seems to be right, as the output to SSD is also right. My concern is that the aqua and cross section calculation takes a long time to complete (couple of minutes whereas the meshing is set at 5m. More elements to be added to the model).

I would like to have a number of beams next to each other, with a very long length (~150m). I am surprised that this calculation takes so long, as the calculation with a standard H beam takes a few seconds. The parametric section contains only 6 stations. Am I doing something wrong with Teddy / variables or do these kinds of cross-sections simply take a long time to calculate?

Thanks in advance.

Teddy:

+PROG SOFIMSHC
HEAD
PAGE UNII 0
SYST 3D GDIR NEGZ GDIV -1000
CTRL INIT 7
CTRL TOLG 0.010000
CTRL MESH 1
CTRL HMIN 5.0000
CTRL TOPO GAXP 0
CTRL NODE 1000

GAX AI0 TYPE LANE
 GAXB X1 0.00000000 0.00000000 0.00000000 S1 0.00000000  X2 129.00000000 0.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI0 NAME 'H' S 0.1 V 8000
GAXV AI0 NAME 'H' S 0.2 V 9000
GAXV AI0 NAME 'H' S 0.3 V 8500
GAXV AI0 NAME 'H' S 0.4 V 7500
GAXV AI0 NAME 'H' S 0.5 V 9000
GAXV AI0 NAME 'H' S 0.9 V 8000
GAXV AI0 NAME 'HH' S 0.1 V 7900
GAXV AI0 NAME 'HH' S 0.2 V 8900
GAXV AI0 NAME 'HH' S 0.3 V 8400
GAXV AI0 NAME 'HH' S 0.4 V 7400
GAXV AI0 NAME 'HH' S 0.5 V 8900
GAXV AI0 NAME 'HH' S 0.9 V 7900

GAXP AI0 S 0.1 TYPE 'A'
GAXP AI0 S 0.2
GAXP AI0 S 0.3
GAXP AI0 S 0.4
GAXP AI0 S 0.5
GAXP AI0 S 0.9 TYPE 'E'

GAX AI1 TYPE LANE
 GAXB X1 0.00000000 -10.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -10.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI1 NAME 'H' S 0.1 V 8000
GAXV AI1 NAME 'H' S 0.2 V 9000
GAXV AI1 NAME 'H' S 0.3 V 8500
GAXV AI1 NAME 'H' S 0.4 V 7500
GAXV AI1 NAME 'H' S 0.5 V 9000
GAXV AI1 NAME 'H' S 0.9 V 8000
GAXV AI1 NAME 'HH' S 0.1 V 7900
GAXV AI1 NAME 'HH' S 0.2 V 8900
GAXV AI1 NAME 'HH' S 0.3 V 8400
GAXV AI1 NAME 'HH' S 0.4 V 7400
GAXV AI1 NAME 'HH' S 0.5 V 8900
GAXV AI1 NAME 'HH' S 0.9 V 7900

GAXP AI1 S 0.1 TYPE 'A'
GAXP AI1 S 0.2
GAXP AI1 S 0.3
GAXP AI1 S 0.4
GAXP AI1 S 0.5
GAXP AI1 S 0.9 TYPE 'E'

GAX AI2 TYPE LANE
 GAXB X1 0.00000000 -20.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -20.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI2 NAME 'H' S 0.1 V 8000
GAXV AI2 NAME 'H' S 0.2 V 9000
GAXV AI2 NAME 'H' S 0.3 V 8500
GAXV AI2 NAME 'H' S 0.4 V 7500
GAXV AI2 NAME 'H' S 0.5 V 9000
GAXV AI2 NAME 'H' S 0.9 V 8000
GAXV AI2 NAME 'HH' S 0.1 V 7900
GAXV AI2 NAME 'HH' S 0.2 V 8900
GAXV AI2 NAME 'HH' S 0.3 V 8400
GAXV AI2 NAME 'HH' S 0.4 V 7400
GAXV AI2 NAME 'HH' S 0.5 V 8900
GAXV AI2 NAME 'HH' S 0.9 V 7900

GAXP AI2 S 0.1 TYPE 'A'
GAXP AI2 S 0.2
GAXP AI2 S 0.3
GAXP AI2 S 0.4
GAXP AI2 S 0.5
GAXP AI2 S 0.9 TYPE 'E'

GAX AI3 TYPE LANE
 GAXB X1 0.00000000 -30.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -30.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI3 NAME 'H' S 0.1 V 8000
GAXV AI3 NAME 'H' S 0.2 V 9000
GAXV AI3 NAME 'H' S 0.3 V 8500
GAXV AI3 NAME 'H' S 0.4 V 7500
GAXV AI3 NAME 'H' S 0.5 V 9000
GAXV AI3 NAME 'H' S 0.9 V 8000
GAXV AI3 NAME 'HH' S 0.1 V 7900
GAXV AI3 NAME 'HH' S 0.2 V 8900
GAXV AI3 NAME 'HH' S 0.3 V 8400
GAXV AI3 NAME 'HH' S 0.4 V 7400
GAXV AI3 NAME 'HH' S 0.5 V 8900
GAXV AI3 NAME 'HH' S 0.9 V 7900

GAXP AI3 S 0.1 TYPE 'A'
GAXP AI3 S 0.2
GAXP AI3 S 0.3
GAXP AI3 S 0.4
GAXP AI3 S 0.5
GAXP AI3 S 0.9 TYPE 'E'

GAX AI4 TYPE LANE
 GAXB X1 0.00000000 -40.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -40.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI4 NAME 'H' S 0.1 V 8000
GAXV AI4 NAME 'H' S 0.2 V 9000
GAXV AI4 NAME 'H' S 0.3 V 8500
GAXV AI4 NAME 'H' S 0.4 V 7500
GAXV AI4 NAME 'H' S 0.5 V 9000
GAXV AI4 NAME 'H' S 0.9 V 8000
GAXV AI4 NAME 'HH' S 0.1 V 7900
GAXV AI4 NAME 'HH' S 0.2 V 8900
GAXV AI4 NAME 'HH' S 0.3 V 8400
GAXV AI4 NAME 'HH' S 0.4 V 7400
GAXV AI4 NAME 'HH' S 0.5 V 8900
GAXV AI4 NAME 'HH' S 0.9 V 7900

GAXP AI4 S 0.1 TYPE 'A'
GAXP AI4 S 0.2
GAXP AI4 S 0.3
GAXP AI4 S 0.4
GAXP AI4 S 0.5
GAXP AI4 S 0.9 TYPE 'E'

GAX AI5 TYPE LANE
 GAXB X1 0.00000000 -50.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -50.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI5 NAME 'H' S 0.1 V 8000
GAXV AI5 NAME 'H' S 0.2 V 9000
GAXV AI5 NAME 'H' S 0.3 V 8500
GAXV AI5 NAME 'H' S 0.4 V 7500
GAXV AI5 NAME 'H' S 0.5 V 9000
GAXV AI5 NAME 'H' S 0.9 V 8000
GAXV AI5 NAME 'HH' S 0.1 V 7900
GAXV AI5 NAME 'HH' S 0.2 V 8900
GAXV AI5 NAME 'HH' S 0.3 V 8400
GAXV AI5 NAME 'HH' S 0.4 V 7400
GAXV AI5 NAME 'HH' S 0.5 V 8900
GAXV AI5 NAME 'HH' S 0.9 V 7900

GAXP AI5 S 0.1 TYPE 'A'
GAXP AI5 S 0.2
GAXP AI5 S 0.3
GAXP AI5 S 0.4
GAXP AI5 S 0.5
GAXP AI5 S 0.9 TYPE 'E'

GAX AI6 TYPE LANE
 GAXB X1 0.00000000 -60.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -60.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI6 NAME 'H' S 0.1 V 8000
GAXV AI6 NAME 'H' S 0.2 V 9000
GAXV AI6 NAME 'H' S 0.3 V 8500
GAXV AI6 NAME 'H' S 0.4 V 7500
GAXV AI6 NAME 'H' S 0.5 V 9000
GAXV AI6 NAME 'H' S 0.9 V 8000
GAXV AI6 NAME 'HH' S 0.1 V 7900
GAXV AI6 NAME 'HH' S 0.2 V 8900
GAXV AI6 NAME 'HH' S 0.3 V 8400
GAXV AI6 NAME 'HH' S 0.4 V 7400
GAXV AI6 NAME 'HH' S 0.5 V 8900
GAXV AI6 NAME 'HH' S 0.9 V 7900

GAXP AI6 S 0.1 TYPE 'A'
GAXP AI6 S 0.2
GAXP AI6 S 0.3
GAXP AI6 S 0.4
GAXP AI6 S 0.5
GAXP AI6 S 0.9 TYPE 'E'

GAX AI7 TYPE LANE
 GAXB X1 0.00000000 -70.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -70.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI7 NAME 'H' S 0.1 V 8000
GAXV AI7 NAME 'H' S 0.2 V 9000
GAXV AI7 NAME 'H' S 0.3 V 8500
GAXV AI7 NAME 'H' S 0.4 V 7500
GAXV AI7 NAME 'H' S 0.5 V 9000
GAXV AI7 NAME 'H' S 0.9 V 8000
GAXV AI7 NAME 'HH' S 0.1 V 7900
GAXV AI7 NAME 'HH' S 0.2 V 8900
GAXV AI7 NAME 'HH' S 0.3 V 8400
GAXV AI7 NAME 'HH' S 0.4 V 7400
GAXV AI7 NAME 'HH' S 0.5 V 8900
GAXV AI7 NAME 'HH' S 0.9 V 7900

GAXP AI7 S 0.1 TYPE 'A'
GAXP AI7 S 0.2
GAXP AI7 S 0.3
GAXP AI7 S 0.4
GAXP AI7 S 0.5
GAXP AI7 S 0.9 TYPE 'E'

GAX AI8 TYPE LANE
 GAXB X1 0.00000000 -80.00000000 0.00000000 S1 0.00000000  X2 129.00000000 -80.00000000 0.00000000 S2 1.00000000

LET#S_ACT 0.00
GAXV AI8 NAME 'H' S 0.1 V 8000
GAXV AI8 NAME 'H' S 0.2 V 9000
GAXV AI8 NAME 'H' S 0.3 V 8500
GAXV AI8 NAME 'H' S 0.4 V 7500
GAXV AI8 NAME 'H' S 0.5 V 9000
GAXV AI8 NAME 'H' S 0.9 V 8000
GAXV AI8 NAME 'HH' S 0.1 V 7900
GAXV AI8 NAME 'HH' S 0.2 V 8900
GAXV AI8 NAME 'HH' S 0.3 V 8400
GAXV AI8 NAME 'HH' S 0.4 V 7400
GAXV AI8 NAME 'HH' S 0.5 V 8900
GAXV AI8 NAME 'HH' S 0.9 V 7900

GAXP AI8 S 0.1 TYPE 'A'
GAXP AI8 S 0.2
GAXP AI8 S 0.3
GAXP AI8 S 0.4
GAXP AI8 S 0.5
GAXP AI8 S 0.9 TYPE 'E'

SPT 1001 X 0.00000000 0.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1004 X 0.00000000 -10.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1007 X 0.00000000 -20.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1010 X 0.00000000 -30.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1013 X 0.00000000 -40.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1016 X 0.00000000 -50.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1019 X 0.00000000 -60.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1022 X 0.00000000 -70.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1025 X 0.00000000 -80.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1002 X 129.00000000 0.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1005 X 129.00000000 -10.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1008 X 129.00000000 -20.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1011 X 129.00000000 -30.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1014 X 129.00000000 -40.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1017 X 129.00000000 -50.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1020 X 129.00000000 -60.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1023 X 129.00000000 -70.00000000 0.00000000 FIX PXPYPZMXMYMZ
SPT 1026 X 129.00000000 -80.00000000 0.00000000 FIX PXPYPZMXMYMZ
SLN 1003 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI0' NPA 1001 NPE 1002
SLN 1006 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI1' NPA 1004 NPE 1005
SLN 1009 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI2' NPA 1007 NPE 1008
SLN 1012 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI3' NPA 1010 NPE 1011
SLN 1015 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI4' NPA 1013 NPE 1014
SLN 1018 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI5' NPA 1016 NPE 1017
SLN 1021 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI6' NPA 1019 NPE 1020
SLN 1024 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI7' NPA 1022 NPE 1023
SLN 1027 GRP - SNO 2 DRX 0.000000 0.000000 -1.000000 STYP B REF 'AI8' NPA 1025 NPE 1026


END

+PROG AQUA
HEAD
INTE 0
END
2

Hi Coen,

there are 2 ways to reduce the export times.

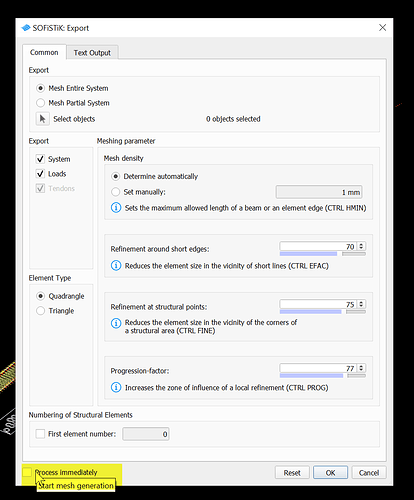

1.) Disable the option “process immediately” during export.

screenshot-1
screenshot-1959×1157 46.4 KB

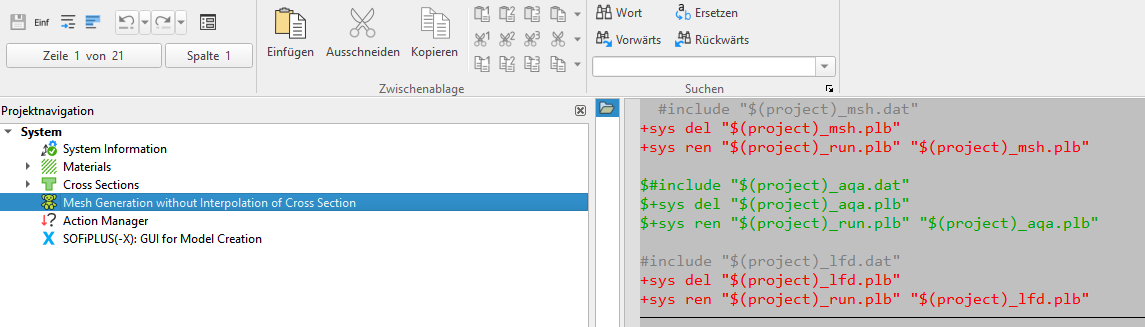

You can then start the meshing in the SSD in a separate task and disable the interpolation → Create a new Task in SSD → see an example below

screenshot-2
screenshot-21145×327 32.5 KB

This is certainly sufficient for checking the geometry. But before calculating the system, the interpolation of the cross sections must run.

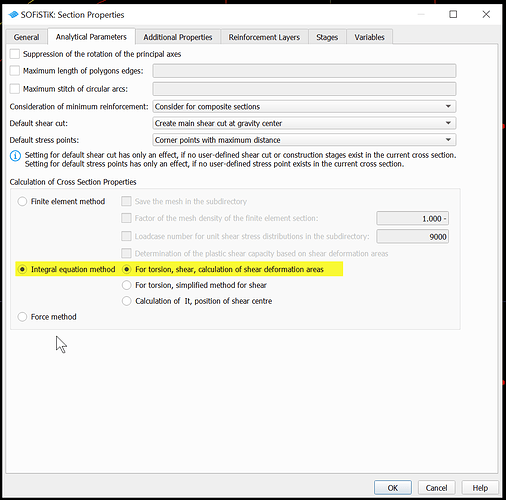

2.) The interpolation of the cross sections takes a long time if the FE cross sections are used (default). If you change the cross sections to the “integral equation method”, the interpolation of the cross sections is faster. Disadvantage: The change must be made individually for each cross section.

screenshot-3
screenshot-31089×1075 38.2 KB

Please also read the AQUA manual (from chapter 1.2.6 Selection of Section Type) if you need more information about the integral cross section method.

Cheers, Adrian
