Shear Cut - CS

Hello,

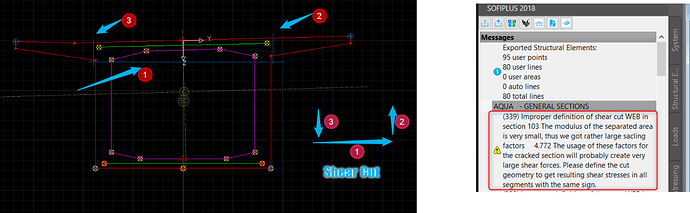

I have a question about defining Shear Cut. I defined it as shown in the picture, but there is a problem with it, so do you know what is wrong?

Thank you in advance…

Hello,
As soon as the cross section has a slight asymmetry, Si is not recognized as 0, but by the algorithm as 0.00xx.
since Si is the denominator, TvII becomes disproportionately large.
TvII=Smax/Si
TvII =√( (VyFvy)² + (VzFvz)² ) * |Z/Zmax - D/Dmax| / ZII

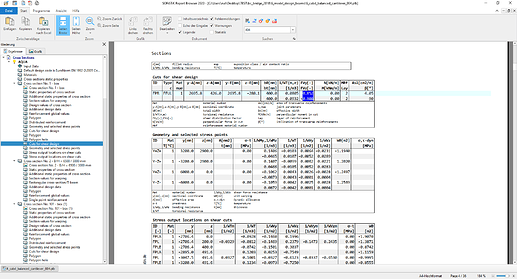

This can be checked in the Report Browser, 0 < Fvy < 1 and 0 > Fvz > -1 must be fulfilled. (ECHO SECT EXTR)

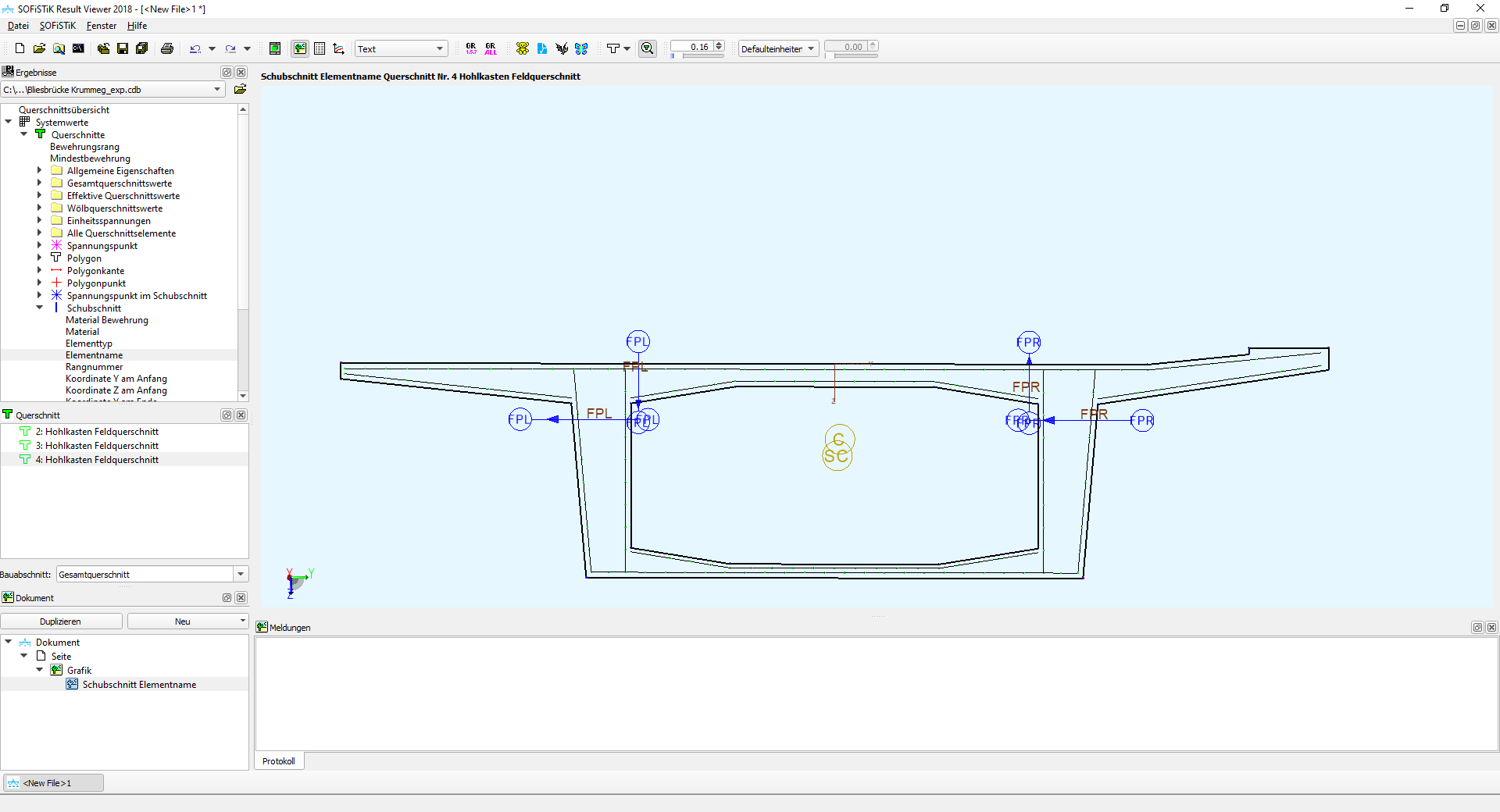

The workaround would be to define the shear cuts differently, see picture.

Best regards,
Your SOFISTiK Support Team
