Secondary effect of PT

[Mohit]

hi everyone

Does do get the secondary effects of PT in the prestress box girder, can we capture that effect under maxima or it will always be there in aqb only

[JE170969]

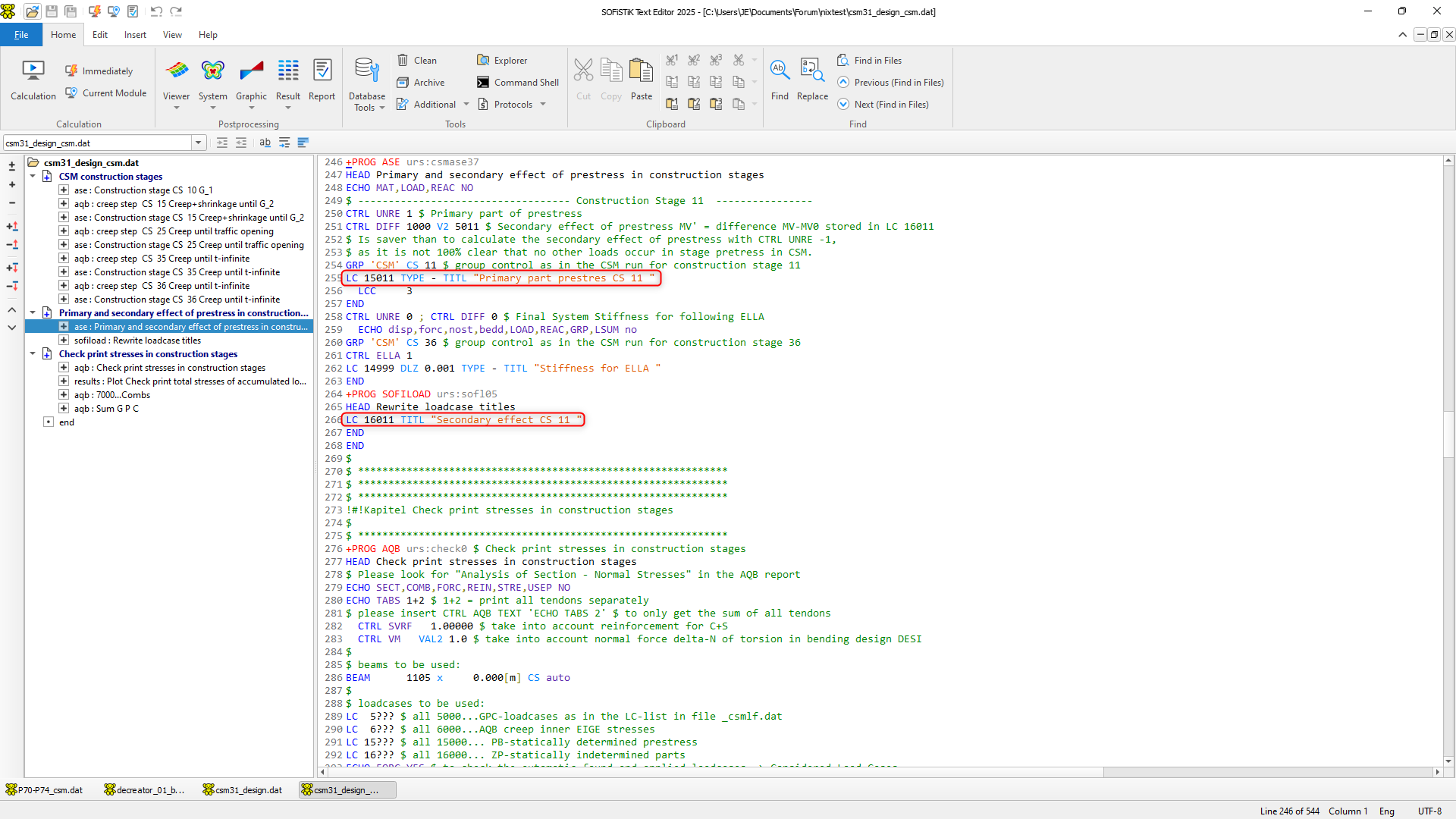

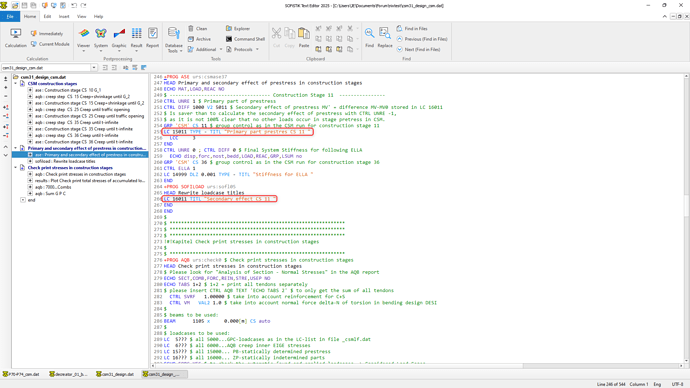

If you calculate construction stages modul CSM creates automatically load case number 150xx and 160xx for prestress. So if there is a construction stage CS 11 with prestressing you find beside load case 5011 (which includes both parts of prestressing) load cases 15011 and 16011, see screenshot.
