I have run a non-linear calculation with ASE in a quad elements FEM with reinforcement provided in two perpendicular directions , X and Y.
I was interested in obtaining the stresses in the reinforcement for each direction by means of wingraf.

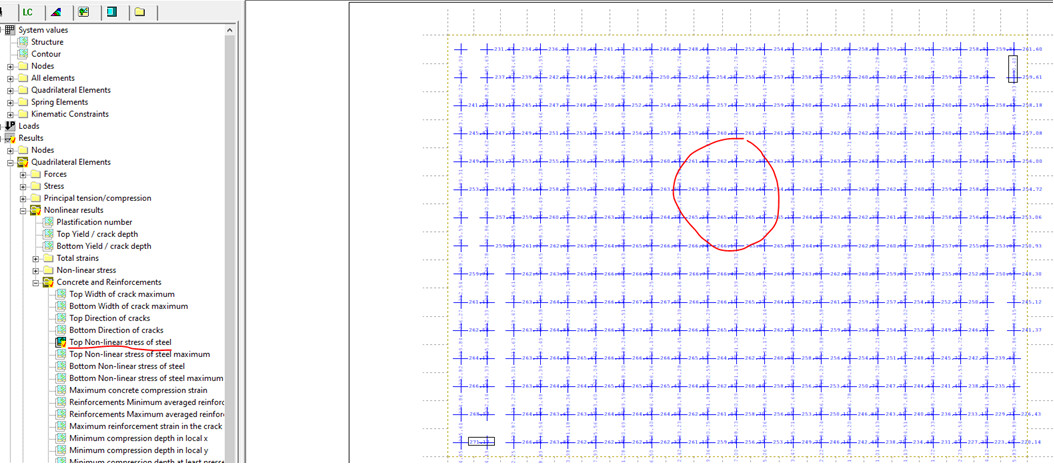

However, I was able only to obtain the stresses in both directions simultaneously:

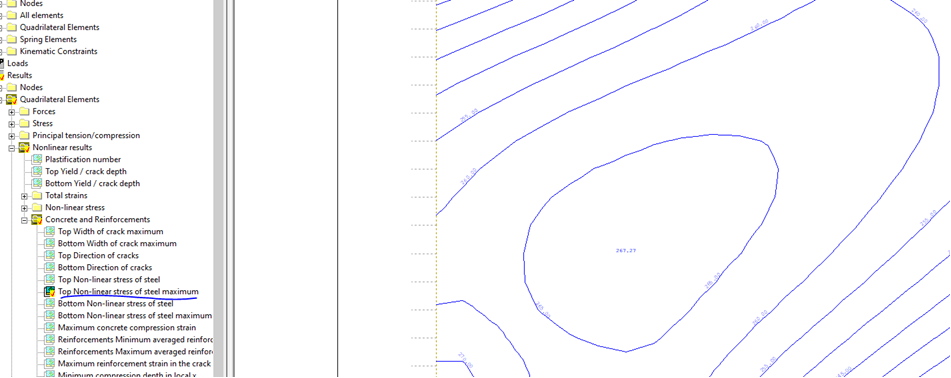

And the maximum stress in reinforcement without distinction between the two directions:
Anyone knows how can I get the reinforcement stresses for each direction individually? Can I get it by means of wingraf?
Do I need to access the database to get those results?
Any hint is welcomed!
Thank you in advance!
PD. A little example if you want to take a look
Non-LinearStresses2direct.dat (3.6 KB)
