Most unfavourable load position from running load

SOFiSTiK
1

Dear all,

I calculated running load on my structure and i would like to choose load position for every structural elements which causes the bigest internal forces. I need the critical load position for further calculation. Can you give me any advice how to do it?

Thanks,
Norbert Viczián

Reszletes modell_230505.dwg (1.0 MB)
Reszletes modell_230505.sofistik (213.8 KB)

1 Like
2

For example there are the corss beams and i calculate the sercive vehicle load from EN for pedestrian bridges. I would like to choose one load position which cause the biggest bending moment in the whole structure.

3

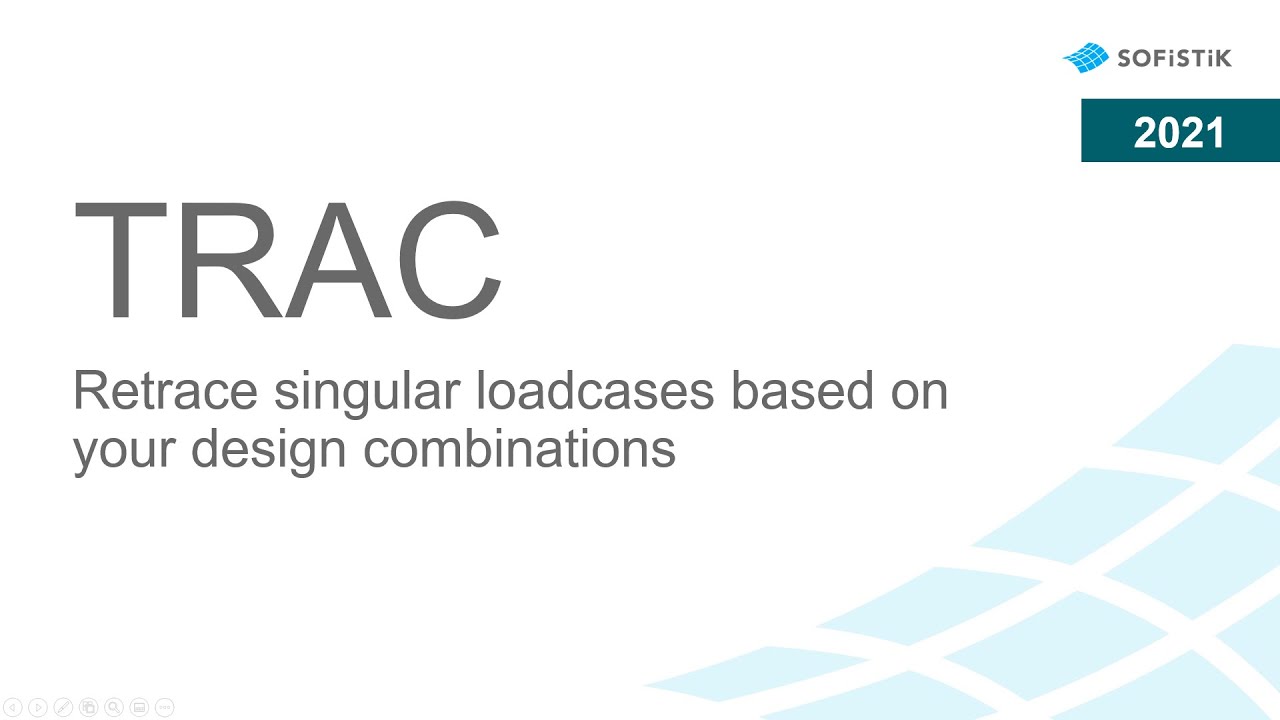

TRAC function in module MAXIMA can do that, but you have to know where(element no.) is the maximum of bending moment.
