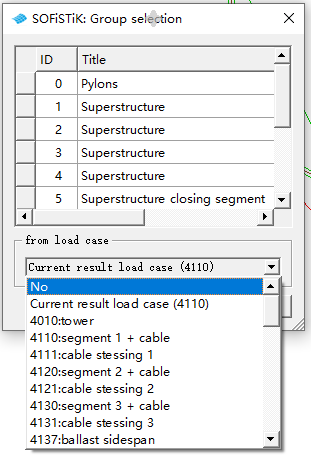

In Wingraf user can select how the active/inactive groups are shown as below:
Is it possible to add an option: show inactive groups in dashed lines (while the currect active groups are in solid lines)
To do this, I usually draw the whole structure in dashed lines. On a second layer I draw the selected structure, e.g. with group selection from loadcase, using continous lines.
Regards
gmay
