Debonding Prestressed Tendon in Prestressing Editor

SOFiSTiK SOFiPLUS
1

Hi,
I want to model a concrete beam with prestressed tendons.
My beam is 37.3m long, if I want to specify a debonded tendon that is debonded 7m on either side, would I just specify the start/end station as (7000 mm and 30300 mm). Would this effect my force transition length?

Prestressed Editor

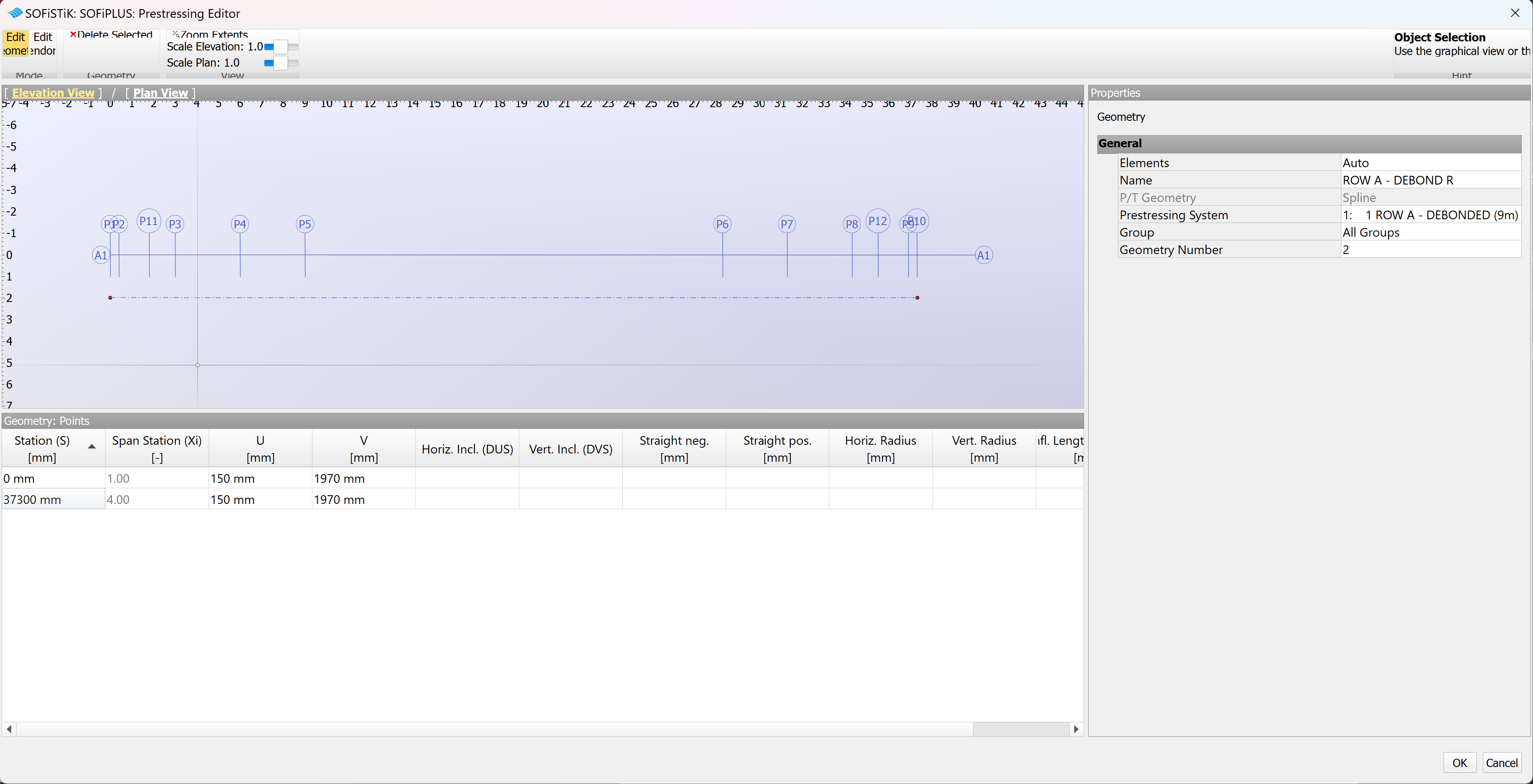

Prestressed Editor1312Ɨ761 172 KB

Thanks,
Alex

2

Hi Alex,
Iā€™m still working with the CADINP language, specifically the TENDON module.
You need to specify the effective start and end stations where the force developed by the tendon will actually act.

Good luck!

Abderrahman OMRI

3

Thanks for your response. To be clear is this what I should be doing?

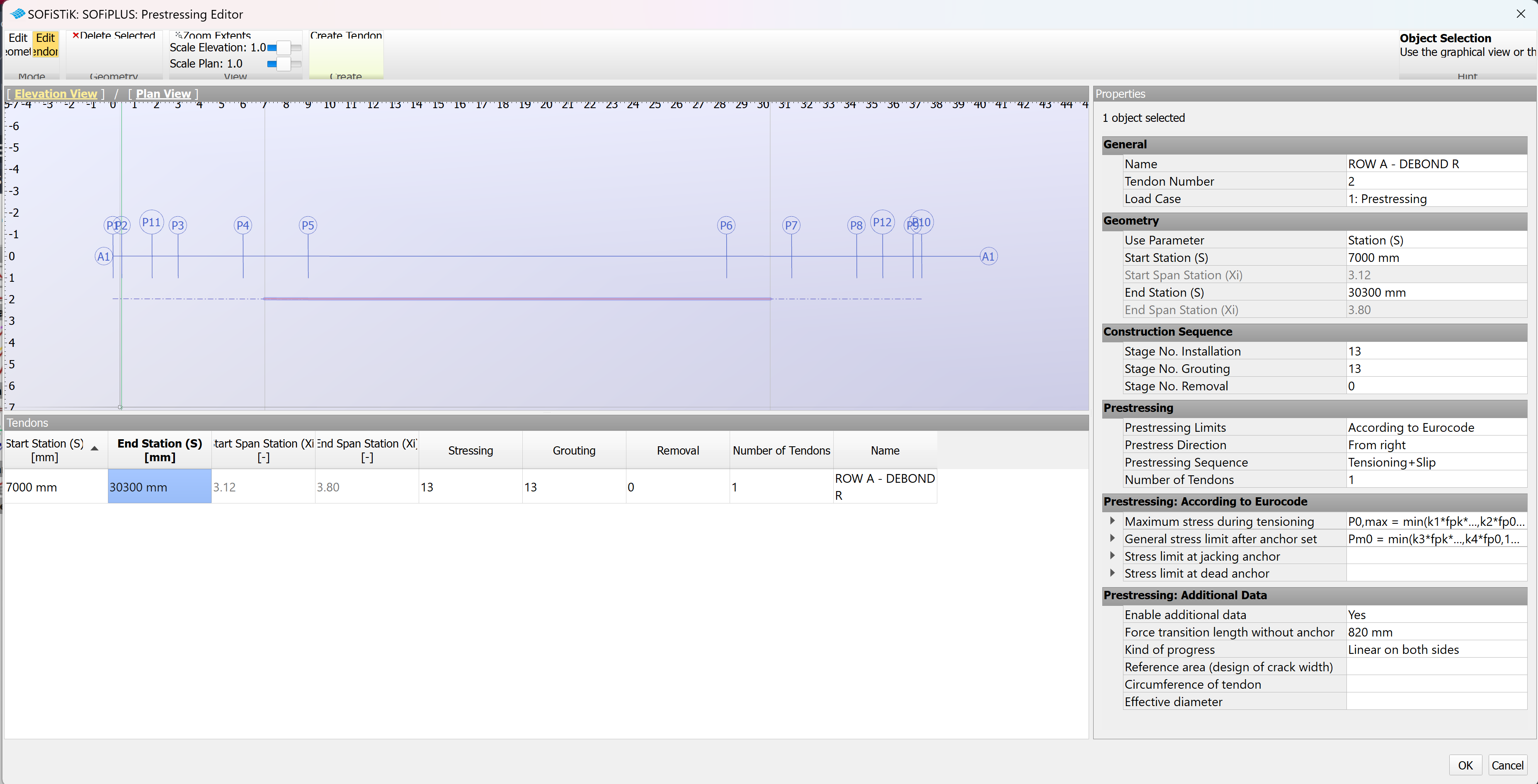

image3705Ɨ1895 270 KB

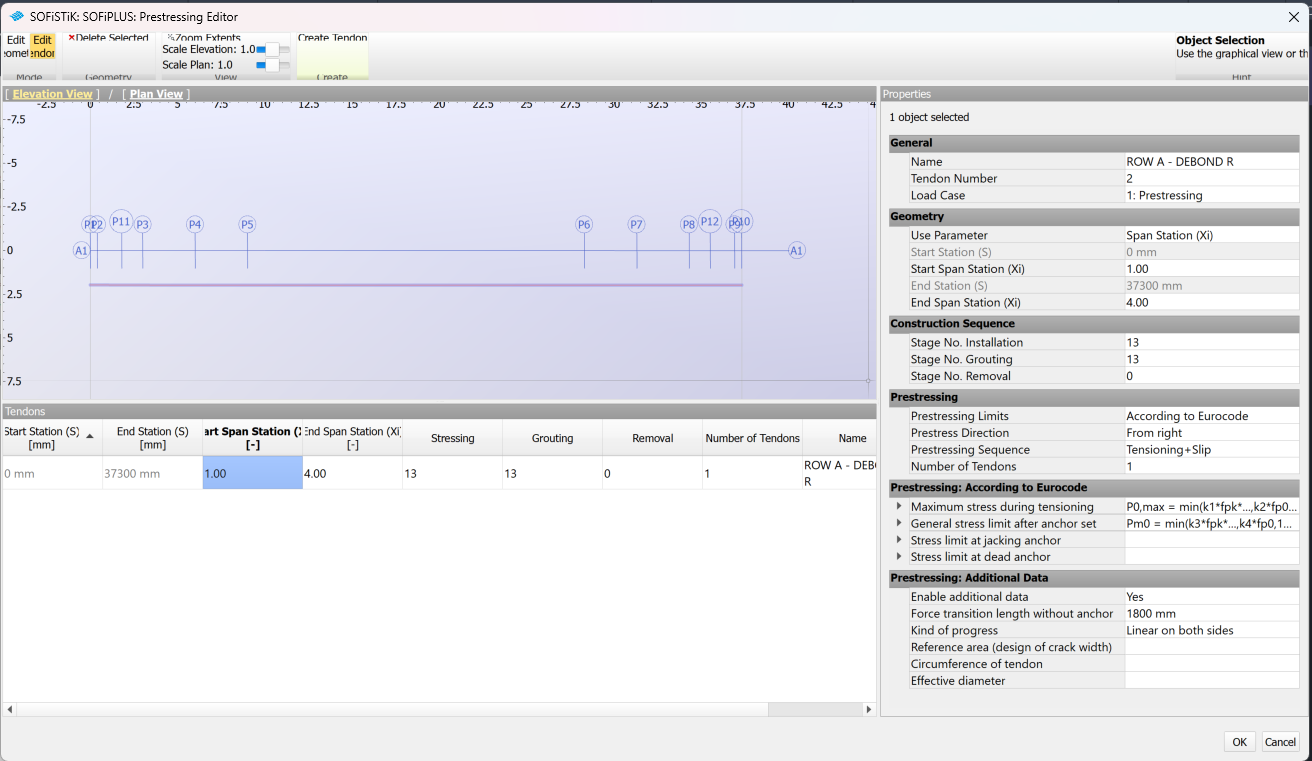

image3710Ɨ1892 376 KB

4

Yes, exactly !

Abderrahman OMRI

1 Like
