Greetings Sofistik Community,
with Sofistik 2023, I want to read the node properties of a cdb file that has been generated by an external source. In order to do this, I have read the documentation on how to read the node properties ( Read the node properties - CDB Interfaces 2023 ) and the documentation of the programming interface in the cdbase.chm file in the Sofistik folder as well.
Based on these guides, I came up with the following code that works on the read_nodes.cdb file in the Sofistik examples folder, but not with any self-generated cdb file:
# +============================================================================+
# | Company: SOFiSTiK AG |
# | Version: SOFiSTIK 2023 |
# +============================================================================+
# import all types from sofistik_daten.py, original file can be found by following
# --> examples/python/sofistik_daten.py
from sofistik_daten import *
import os # for the environment variable necessary
import platform # checks the python platform
from ctypes import * # read the functions from the cdb
from config import SOFISTIK_VERSION, DLL_DIR1, DLL_DIR2, PATH_TO_CDB, USE_TEST_CDB
fileName = r'\\PATH TO CDB FILE';
'''
read from db based on sofistik documentation
'''
# See for more information: https://docs.python.org/3/whatsnew/3.8.html#ctypes
os.add_dll_directory(DLL_DIR1)
os.add_dll_directory(DLL_DIR2)
# This example has been tested with Python 3.7 (64-bit)
print("The path variable=", os.environ["Path"])
# Check the python platform (32bit or 64bit)
print("Python architecture=", platform.architecture())
sofPlatform = str(platform.architecture())
# Get the DLL (32bit or 64bit DLL)
if sofPlatform.find("32Bit") < 0:
# Set environment variable for the DLL files
print("Hint: 64bit DLLs are used")
path = os.environ["Path"]
# # 64bit DLLs
# dllPath = r"C:\sofistik_installation\trunk\SOFiSTiK trunk\interfaces\64bit"
# dllPath += ";"
# # other necessary DLLs
# dllPath += r"C:\sofistik_installation\trunk\SOFiSTiK trunk"
# os.environ["Path"] = dllPath + ";" + path
# Get the DLL functions
myDLL = cdll.LoadLibrary("sof_cdb_w-2023.dll")
py_sof_cdb_get = cdll.LoadLibrary("sof_cdb_w-2023.dll").sof_cdb_get
py_sof_cdb_get.restype = c_int
py_sof_cdb_flush = cdll.LoadLibrary("sof_cdb_w-2023.dll").sof_cdb_flush
py_sof_cdb_kenq = cdll.LoadLibrary("sof_cdb_w-2023.dll").sof_cdb_kenq_ex
else:
# Set environment variable for the dll files
print("Hint: 32bit DLLs are used")
path = os.environ["Path"]
# # 32bit DLLs
# dllPath = r"C:\sofistik_installation\trunk\SOFiSTiK trunk\interfaces\32bit"
# os.environ["Path"] = dllPath + ";" + path
# Get the DLL functions
myDLL = cdll.LoadLibrary("cdb_w31.dll")
py_sof_cdb_get = cdll.LoadLibrary("cdb_w31.dll").sof_cdb_get
py_sof_cdb_get.restype = c_int
py_sof_cdb_flush = cdll.LoadLibrary("cdb_w31.dll").sof_cdb_flush
py_sof_cdb_kenq = cdll.LoadLibrary("cdb_w31.dll").sof_cdb_kenq_ex
# Connect to CDB
Index = c_int()
'''
Index = 0 initialise CDBASE and open scratch data base only
Index = 99 test if NAME is a valid database and open the base
if possible. Return with the assigned index.
If the file does not exist, it will be created.
Index = 96 open a scratch database, filename is the path to
use or NULL.
Index = 95 open in read-only mode
Index = 94 create a new data base (STATUS=NEW)
'''
cdbIndex = 99
# important: Unicode call!
'''
-16 unknown error
-17 path not found
-18 Name not valid
-27 file not found
-28 no permission to create file
-37 too many open files
-38 no permission to write file
-47 wrong CDBase-Version
-48 file is no CDBase-file
'''
if USE_TEST_CDB: fileName = fileName.encode('utf-8') # don't know why
cdbStat = c_int() # get the CDB status
if not os.path.exists(fileName):
print("Datei existiert nicht:", fileName)
else:
Index.value = myDLL.sof_cdb_init(fileName, cdbIndex)
if Index.value < 0:
print("Fehler beim Öffnen, Code =", Index.value)
else:
print("CDB erfolgreich geöffnet, Index =", Index.value)
cdbStat = myDLL.sof_cdb_status(Index.value)
# status 3 is a combination of stat codes 1 + 2, 1 = CDBase is active, 2 = Index is connected to file
print("Status =", cdbStat)
pos = c_int(0)
datalen = c_int(0)
ie = c_int(0)
datalen.value = sizeof(CNODE)
RecLen = c_int(sizeof(cnode))
"""
do while ie == 0, see cdbase.chm, Returnvalue.
= 0 -> No error
= 1 -> Item is longer than Data
= 2 -> End of file reached
= 3 -> Key does not exist
"""
py_sof_cdb_flush(Index)
while ie.value < 2:
ie.value = py_sof_cdb_get(Index, 20, 0, byref(cnode), byref(RecLen), 1)
print("{:10d}{:10d}{:10d}{:10d}{:10.2f}{:10.2f}{:10.2f}".format(
cnode.m_nr, # node-number
cnode.m_inr, # internal node-number
cnode.m_kfix, # degree of freedoms
cnode.m_ncod, # additional bit code
cnode.m_xyz[0], # x coordinates
cnode.m_xyz[1], # y coordinates
cnode.m_xyz[2]) # z coordinates
)
# Always read the length of record before sof_cdb_get is called
RecLen = c_int(sizeof(cnode))
# Close the CDB, 0 - will close all the files
myDLL.sof_cdb_close(0)
# Print again the status of the CDB, if status = 0 -> CDB Closed successfully
cdbStat = myDLL.sof_cdb_status(Index.value)
if cdbStat == 0:
print("CDB closed successfully, status = 0")
with the .cdb test-file, the output looks like this:
(CDB successfully opened, index = 1, status = 3)
Hint: 64bit DLLs are used
CDB erfolgreich geöffnet, Index = 1
Status = 3
101 1 1052 3 -1.50 -1.50 0.00
102 2 1052 3 -1.50 1.50 0.00
103 3 1052 3 1.50 1.50 0.00
104 4 1052 3 1.50 -1.50 0.00
500 5 1052 3 0.00 0.00 0.00
1001 6 1052 2 -1.20 -1.50 0.00
1002 7 1052 2 -0.90 -1.50 0.00
1003 8 1052 2 -0.60 -1.50 0.00
1004 9 1052 2 -0.30 -1.50 0.00
1005 10 1052 2 0.00 -1.50 0.00
1006 11 1052 2 0.30 -1.50 0.00
1007 12 1052 2 0.60 -1.50 0.00
1008 13 1052 2 0.90 -1.50 0.00
1009 14 1052 2 1.20 -1.50 0.00
1010 15 1052 2 -1.50 -1.20 0.00
1011 16 1052 2 -1.50 -0.90 0.00
1012 17 1052 2 -1.50 -0.60 0.00
1013 18 1052 2 -1.50 -0.30 0.00
1014 19 1052 2 -1.50 0.00 0.00
1015 20 1052 2 -1.50 0.30 0.00
1016 21 1052 2 -1.50 0.60 0.00
1017 22 1052 2 -1.50 0.90 0.00
1018 23 1052 2 -1.50 1.20 0.00
1019 24 1052 2 -1.20 1.50 0.00
1020 25 1052 2 -0.90 1.50 0.00
1021 26 1052 2 -0.60 1.50 0.00
1022 27 1052 2 -0.30 1.50 0.00
1023 28 1052 2 0.00 1.50 0.00
1024 29 1052 2 0.30 1.50 0.00
1025 30 1052 2 0.60 1.50 0.00
1026 31 1052 2 0.90 1.50 0.00
1027 32 1052 2 1.20 1.50 0.00
1028 33 1052 2 1.50 -1.20 0.00
1029 34 1052 2 1.50 -0.90 0.00
1030 35 1052 2 1.50 -0.60 0.00
1031 36 1052 2 1.50 -0.30 0.00
1032 37 1052 2 1.50 0.00 0.00
1033 38 1052 2 1.50 0.30 0.00
1034 39 1052 2 1.50 0.60 0.00
1035 40 1052 2 1.50 0.90 0.00
1036 41 1052 2 1.50 1.20 0.00
1037 42 1052 2 -1.20 -1.20 0.00
1038 43 1052 2 -1.20 -0.90 0.00
1039 44 1052 2 -1.20 -0.60 0.00
1040 45 1052 2 -1.20 -0.30 0.00
1041 46 1052 2 -1.20 0.00 0.00
1042 47 1052 2 -1.20 0.30 0.00
1043 48 1052 2 -1.20 0.60 0.00
1044 49 1052 2 -1.20 0.90 0.00
1045 50 1052 2 -1.20 1.20 0.00
1046 51 1052 2 -0.90 -1.20 0.00
1047 52 1052 2 -0.90 -0.90 0.00
1048 53 1052 2 -0.90 -0.60 0.00
1049 54 1052 2 -0.90 -0.30 0.00
1050 55 1052 2 -0.90 0.00 0.00
1051 56 1052 2 -0.90 0.30 0.00
1052 57 1052 2 -0.90 0.60 0.00
1053 58 1052 2 -0.90 0.90 0.00
1054 59 1052 2 -0.90 1.20 0.00
1055 60 1052 2 -0.60 -1.20 0.00
1056 61 1052 2 -0.60 -0.90 0.00
1057 62 1052 2 -0.60 -0.60 0.00
1058 63 1052 2 -0.60 -0.30 0.00
1059 64 1052 2 -0.60 0.00 0.00
1060 65 1052 2 -0.60 0.30 0.00
1061 66 1052 2 -0.60 0.60 0.00
1062 67 1052 2 -0.60 0.90 0.00
1063 68 1052 2 -0.60 1.20 0.00
1064 69 1052 2 -0.30 -1.20 0.00
1065 70 1052 2 -0.30 -0.90 0.00
1066 71 1052 2 -0.30 -0.60 0.00
1067 72 1052 2 -0.30 -0.30 0.00
1068 73 1052 2 -0.30 0.00 0.00
1069 74 1052 2 -0.30 0.30 0.00
1070 75 1052 2 -0.30 0.60 0.00
1071 76 1052 2 -0.30 0.90 0.00
1072 77 1052 2 -0.30 1.20 0.00
1073 78 1052 2 0.00 -1.20 0.00
1074 79 1052 2 0.00 -0.90 0.00
1075 80 1052 2 0.00 -0.60 0.00
1076 81 1052 2 -0.00 -0.30 0.00
1077 82 1052 2 0.00 0.30 0.00
1078 83 1052 2 0.00 0.60 0.00
1079 84 1052 2 -0.00 0.90 0.00
1080 85 1052 2 0.00 1.20 0.00
1081 86 1052 2 0.30 -1.20 0.00
1082 87 1052 2 0.30 -0.90 0.00
1083 88 1052 2 0.30 -0.60 0.00
1084 89 1052 2 0.30 -0.30 0.00
1085 90 1052 2 0.30 0.00 0.00
1086 91 1052 2 0.30 0.30 0.00
1087 92 1052 2 0.30 0.60 0.00
1088 93 1052 2 0.30 0.90 0.00
1089 94 1052 2 0.30 1.20 0.00
1090 95 1052 2 0.60 -1.20 0.00
1091 96 1052 2 0.60 -0.90 0.00
1092 97 1052 2 0.60 -0.60 0.00
1093 98 1052 2 0.60 -0.30 0.00
1094 99 1052 2 0.60 0.00 0.00
1095 100 1052 2 0.60 0.30 0.00
1096 101 1052 2 0.60 0.60 0.00
1097 102 1052 2 0.60 0.90 0.00
1098 103 1052 2 0.60 1.20 0.00
1099 104 1052 2 0.90 -1.20 0.00
1100 105 1052 2 0.90 -0.90 0.00
1101 106 1052 2 0.90 -0.60 0.00
1102 107 1052 2 0.90 -0.30 0.00
1104 109 1052 2 0.90 0.30 0.00
1105 110 1052 2 0.90 0.60 0.00
1106 111 1052 2 0.90 0.90 0.00
1107 112 1052 2 0.90 1.20 0.00
1108 113 1052 2 1.20 -1.20 0.00
1109 114 1052 2 1.20 -0.90 0.00
1110 115 1052 2 1.20 -0.60 0.00
1111 116 1052 2 1.20 -0.30 0.00
1112 117 1052 2 1.20 0.00 0.00
1113 118 1052 2 1.20 0.30 0.00
1114 119 1052 2 1.20 0.60 0.00
1115 120 1052 2 1.20 0.90 0.00
1116 121 1052 2 1.20 1.20 0.00
1116 121 1052 2 1.20 1.20 0.00
CDB closed successfully, status = 0
Whereas with the generated cdb-file, the output looks like this:
(CDB successfully opened, index = 1, status = 3)
Hint: 64bit DLLs are used
CDB erfolgreich geöffnet, Index = 1
Status = 3
0 0 0 0 0.00 0.00 0.00
CDB closed successfully, status = 0

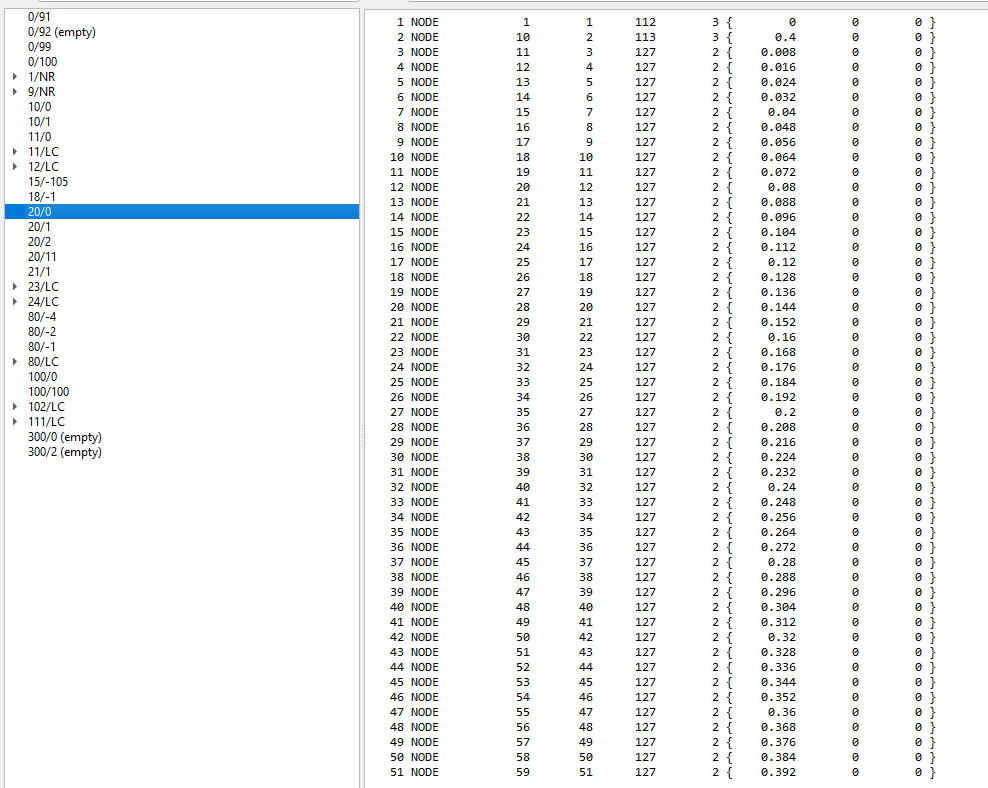

The function py_sof_cdb_get(…) returns the code number 3 which means the key 20/0 does not exist. But this contradicts the fact that the key 20/0 does exist in that file and is full of data:
Unfortunately I am unable to upload anything since I am a new user and .cdb files cannot be uploaded in general.
Any help is appreciated, thank you in advance.
