Hello everyone,

I am analyzing the results from my bridge model, and I would like to represent the bending moment values in 2-meter segments from the beginning of the beam. Is there any way to create this type of visualization in SOFiSTiK?

Kind regards,

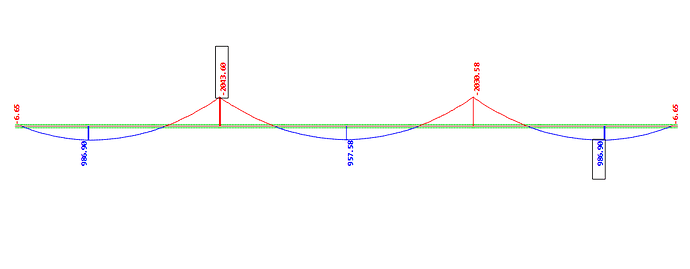

This is my current representation:

image1036×404 15.9 KB

2

You can define a design-element with a division of 2 m.
Examples you find in Teddy under “File - Examples - decreator”.
In Graphic then you look for “Results - Desgn Elements” instead of “Results - Beam Elements”.

I hope this helps.
